Rubber Tracks Type Mining Small Hydraulic Pile Driver Crawler Down The Hole Drilling Rig
Product Description

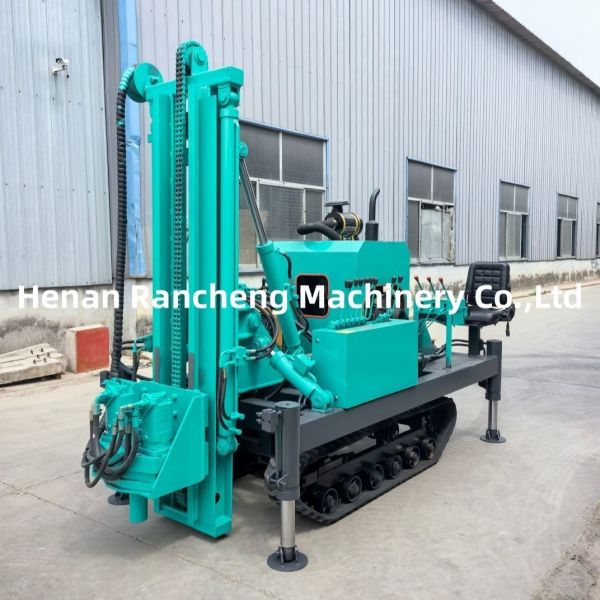

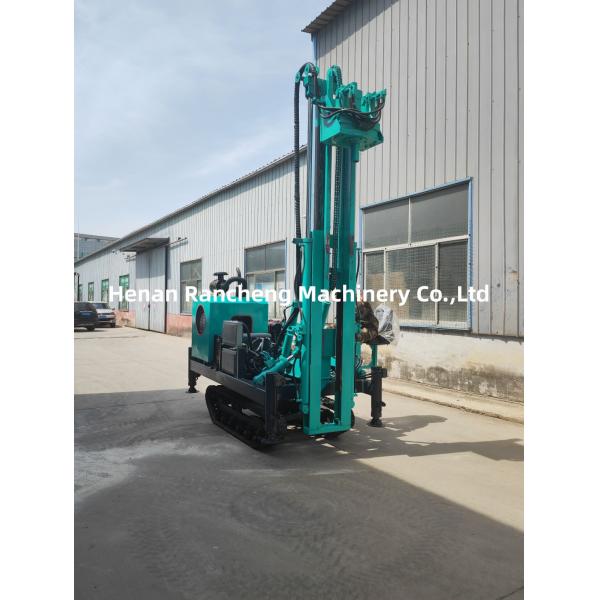

The RCKM-60S compact crawler pneumatic pile driver is suitable for solar-powered piling, roadside fence piling, and small pile drilling. It offers a wide range of applications, including solar-powered spiral pile drilling, auger pipe drilling, and down-the-hole drilling.
Powered by a 60-horsepower diesel engine and a hydraulic-mechanical transmission, this machine features high efficiency, easy shifting, multi-angle piling, high precision, durability, and time- and labor-saving features, making it particularly suitable for field construction.
Technical data
| Chassis | Heavy-duty engineering rubber track chassis |
| diesel engine | 60HP diesel engine, Brand is Weichai 490 engine, Four-cylinder diesel engine |
| Power head | Dual hydraulic power head/ internal five-star power head(Select one) |
| oil pump | Double pump 40/40 |
| walking style | Variable speed box travel |
| Drilling diameter | 50-500mm/ Depth 1m to 10m |
| Pressuized system | Cylinder chain booster |
| walking speed | 7-15km/h |
| Hydraulic working pressure | 25mpa |
| Cooling system | electronic radiator |
| Piling height | 1 to 3 meters |
| Slide travel | 3 meters |
| Outrigger | Four |
| length*width*height | 3400mm*1800mm*2400mm |
| weight | 2.5t |
Application
This Small crawler piling rig is suitable for high-speed railway contact network support piles, slope protection piles, solar photovoltaic power station foundation support piles, power grid renovation, civil construction, new rural construction, municipal engineering construction, landscaping and other projects. Applicable to various geological conditions. Suitable for soil layer, clay layer, filler layer, clay layer, powder layer, silt layer, sand layer and part of the strata containing pebbles.
