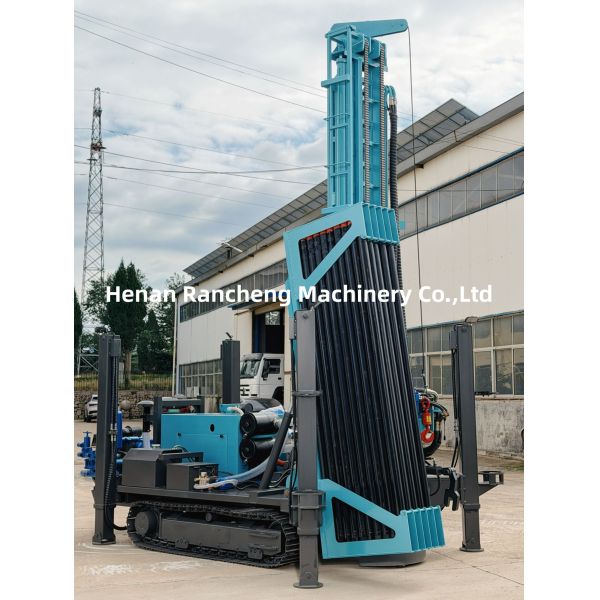

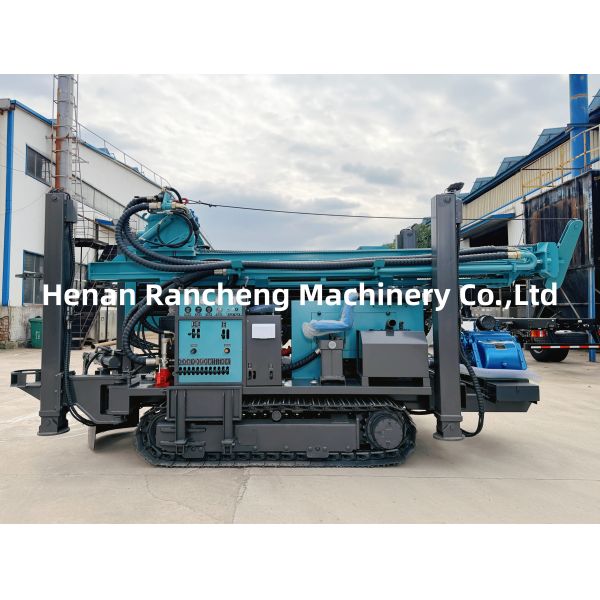

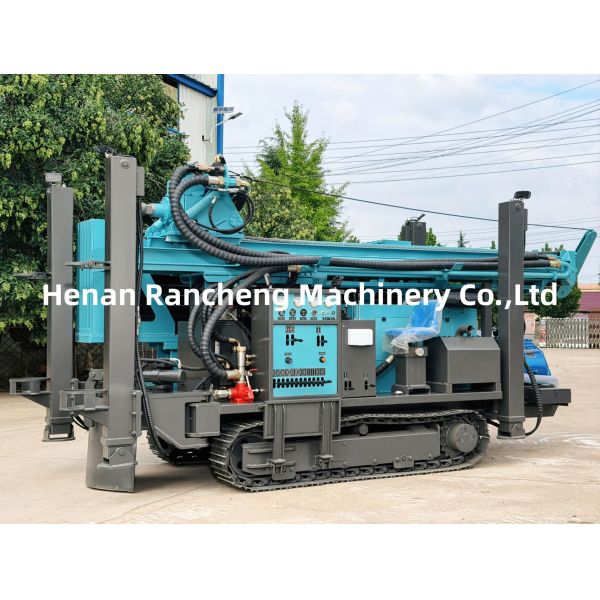

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack

Name: Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack
Brand: RanCheng
Price: 23000 USD

Quality Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack for sale

Brand Name : RanCheng

Model Number : RCF350C

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : $ 23000-28000

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by one 20" container

Max torque of rotary : 6200-9000Nm

Drill depth : 350m

Hoist lifting capacity : 2T

Mud Pump flow : 450L/min (option)

Travel speed : 2.5Km/h

Drilling way : Air compressor drilling or mud pump drilling

Contact Now

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack

Product Description

RCF350C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.

Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.

Technical parameters

Bore diameter(hammer)	140-350mm
Bore depth	350m
Air consumption	17-35m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of rotary	6200-9000Nm
Rotary speed	55-115r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2000×2550mm
weight	8600Kg
Diesel engine	91KW Yuchai engine 4 cylinders
Drilling way	Air compressor drilling or mud pump drilling
