Full Hydraulic Depth 300m Trailer Mounted Water Well Drilling Rig With 4*4 Driving
Machine Introduction
RCF300WT tractor mounted deep water well drilling rig is a product independently developed by our company. This new generation of down-the-hole hammer combined with greater pneumatic power plays an important role in increasing drilling speed.
Mainly used for geothermal drilling, farmland irrigation, home yards, gardens and water well drilling, with a drilling diameter of 70-350 mm and a drilling depth of 100 meters to 300 meters. It can also be used for piling of small buildings such as farmhouses or factories, with a drilling diameter of up to 500 mm and a depth of more than 60 meters. Adopting the latest model and advanced hydraulic technology, it has low energy consumption, large rotary torque and convenient drilling deviation.
Technical Parameters
| Model | RCF300WT |
| Weight (t) | 5T |
| Hole Diameter (mm) | 140 - 300 |
| Depth (m) | 300 |
| Feed Stroke (mm) | 3400 |
| Travelling Speed (km/h) | 30 |
| Climbing Angle | 25 Degree |
| Tractor Horse Power (hp) | 100HP Dongfanghong brand |
| Air Pressure (Mpa) | 1.7 - 2.5 |
| Air Consumption (m^3/min) | 17 - 31 |
| Rod Diameter (mm) | 76 & 89 |
| Rod Length (mm) | 3000 |
| Lifting Force (t) | 18 |
| Rotation Speed (rpm) | 45 -70 |
| Output Torque (n.m) | 5000 -5500 |
| Dimension (mm) | 4000*2000*2700 |
Machine Advantages
1. Tractor and tractor integration
The drilling rig and tractor are integrated. The tractor is both a transport vehicle and a drilling rig. When going to the work site, the air compressor can be towed behind the drilling rig, and only a tricycle is needed to load the drill rod, which saves the investment in transportation vehicles and makes travel more convenient.
2. Fuel saving
The RCF300WT drilling rig uses a tractor as a carrier and a hydraulic system as the working power of the drilling rig. The machine only needs the power of the tractor's 100-horsepower diesel engine to easily complete 300 meters of drilling. At the same time, there is no need to start the air compressor when lifting the rod, and only the hydraulic power can be started to lift the rod. Therefore, the drilling cost is lower and the economic benefit is higher.
3. Manpower saving
Only two people are needed to operate the drilling rig-control the equipment and replace the drill rod to complete all the work, saving manpower.

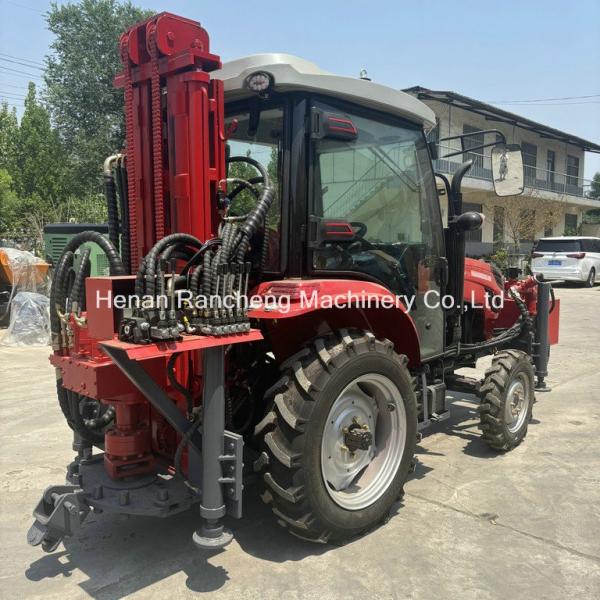

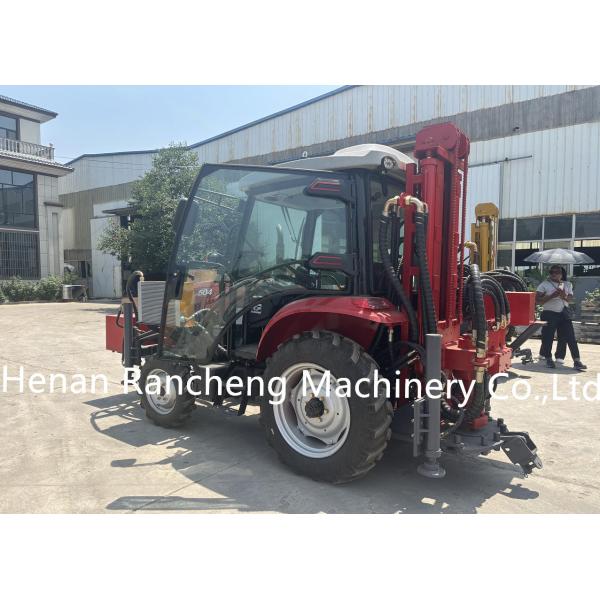

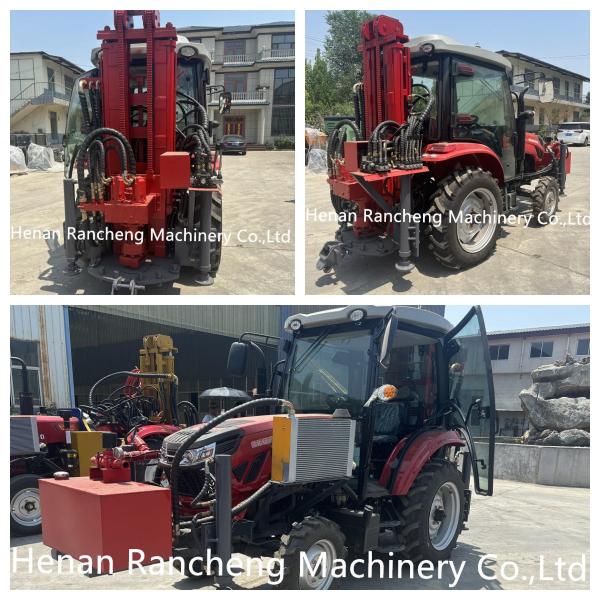

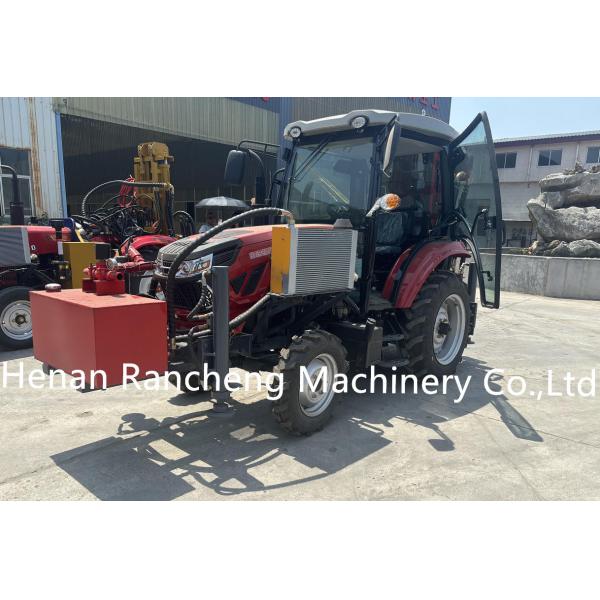

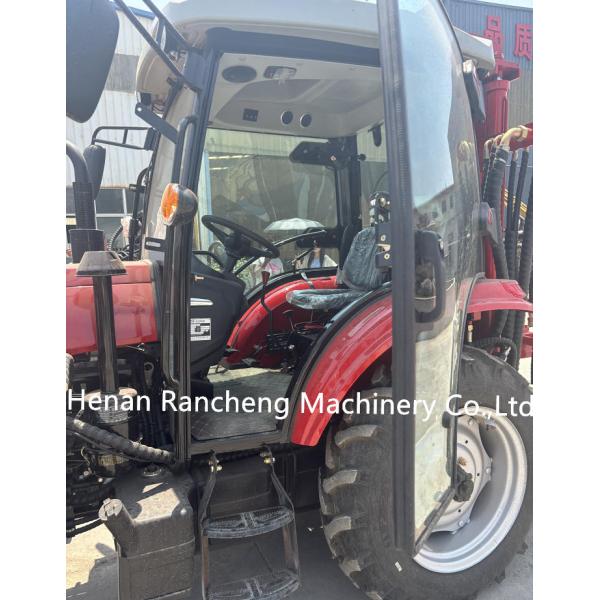

Machine Pictures
